ADC sensors

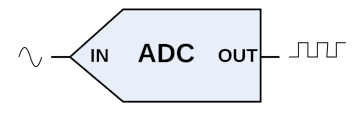

ADC

Example config​

Example config
adc:
  - id: adc1
    pin: P9_39
    filters:
      - multiply: 1.8
      - round: 2

Configuration variables:​

  • id (Optional, string, default: value of {pin}) - uniquely identifies this device in MQTT and Home Assistant.
  • pin (Required, string, allowed_values: ['P9_33', 'P9_35', 'P9_36', 'P9_37', 'P9_38', 'P9_39', 'P9_40']) - ADC GPIO id of Beaglebone board.
  • update_interval (Optional, timeperiod, default: 60s) - update interval after each ADC value is checked.
  • filters (Optional, list, default: default value is in example above) - filter list. See Filters to learn more.
